Mechanical Lock Panels

Mechanical Lock Panels deliver top-tier performance and sleek architectural appeal for both roofing and wall cladding applications. Unlike snap-lock systems, these panels require field-seaming, which creates a mechanically sealed joint for unmatched durability and weather protection. Because of this secure seam, they perform exceptionally well in low-slope roofing (minimum 1:12 pitch for double-lock) and high-wind environments.

Each panel features a male-female interlocking profile, which installers mechanically seam using a single- or double-lock method, depending on project requirements. As a result, the seam remains tight under thermal movement, heavy rainfall, and wind pressure. Additionally, this installation method gives the roof a clean, uninterrupted look—with no exposed fasteners—enhancing both performance and appearance.

You can choose panels in 13″, 17″ or 21″ widths, and lengths up to 40 feet or more, depending on project needs. Furthermore, the panels are available in 24ga or 26ga steel, .032 or .040 aluminum, and 16 oz. copper, offering flexibility for various applications. To ensure color longevity and corrosion resistance, all panels come with Kynar 500® PVDF finishes, which meet industry standards for architectural metal coatings.

Key Features:

• Mechanically seamed for superior wind and water protection

• Strong, clean profile with concealed fasteners

• Ideal for low-slope roofs and high-performance projects

• Available in 13″, 17″ and 21″ widths, with extended panel lengths

• Offered in aluminum, steel, and copper for material versatility

• Kynar 500® finish for fade resistance and code compliance

Commonly Used With:

• Ridge and Hip Caps – Finish panel terminations at roof peaks

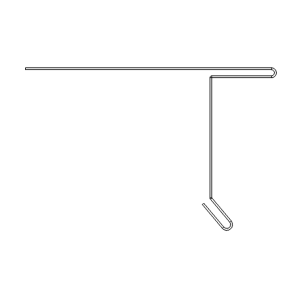

• Drip Edge and Rake Flashing – Control water at perimeter edges

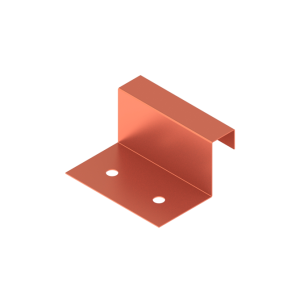

• Panel Clips (Fixed or Floating) – Secure panels and allow movement

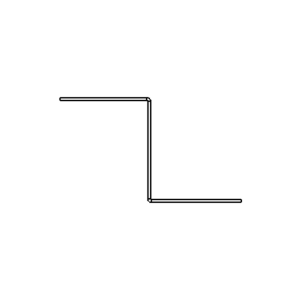

• Z-Flashing and Cleats – Support transitions and seams

Altogether, Mechanical Lock Panels combine high structural performance with refined aesthetics, making them a dependable choice for demanding roofing and façade applications.
